Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Single > IXBX75N170A

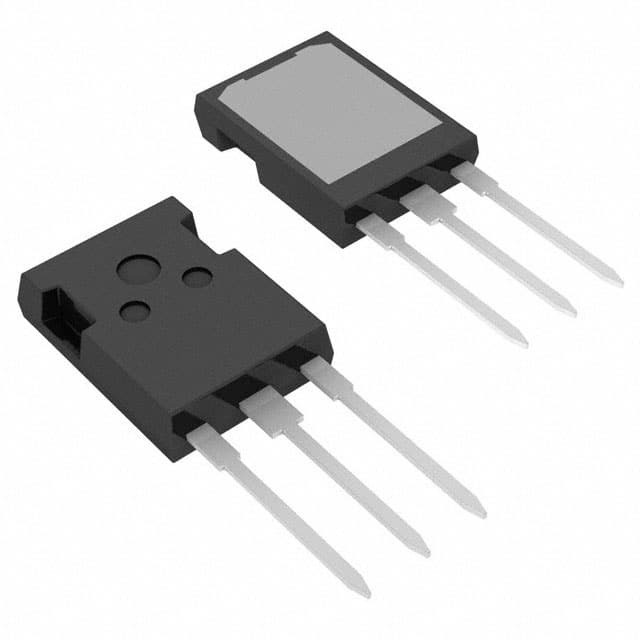

IXBX75N170A Image
Image may be representation.
See specs for product details.

IXBX75N170A

Manufacturer Part Number IXBX75N170A
Manufacturer IXYS
Detailed Description IGBT 1700V 110A 1040W PLUS247
Package PLUS247™-3
In Stock 1546 pcs
Data sheet IXB(K,X)75N170A
Reference Price (In US Dollars)
30
$24.061
Delivery Time Components-House.com is a Reliable Stocking Distributor of Electronic Parts. We specialize in all IXYS series electronic components. We have 1546 pieces of IXYS IXBX75N170A in stock available now. Request a quote from electronics components distributor at Components-House.com, our sales team will contact you within 24 hours.
RFQ Email: info@Components-House.net
Request a quote Submit a Request For Quotation on quantities greater than those
displayed.

Specifications

Product Attribute Attribute Value
Voltage - Collector Emitter Breakdown (Max) 1700 V
Vce(on) (Max) @ Vge, Ic 6V @ 15V, 42A
Test Condition 1360V, 42A, 1Ohm, 15V
Td (on/off) @ 25°C 26ns/418ns
Switching Energy 3.8mJ (off)
Supplier Device Package PLUS247™-3
Series BIMOSFET™
Reverse Recovery Time (trr) 360 ns
Power - Max 1040 W
Package / Case TO-247-3 Variant
Product Attribute Attribute Value
Package Tube
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Input Type Standard
IGBT Type -
Gate Charge 358 nC
Current - Collector Pulsed (Icm) 300 A
Current - Collector (Ic) (Max) 110 A
Base Product Number IXBX75
