Components-House.com is a Reliable Stocking Distributor of Electronic Parts. We specialize in all Cirrus Logic Inc. series electronic components. We have 5835 pieces of Cirrus Logic Inc. CS5505-ASZ in stock available now. Request a quote from electronics components distributor at Components-House.com, our sales team will contact you within 24 hours.
RFQ Email: info@Components-House.net
Specifications
Product Attribute
Attribute Value
Voltage - Supply, Digital
3.15V ~ 5.5V
Voltage - Supply, Analog
±5V

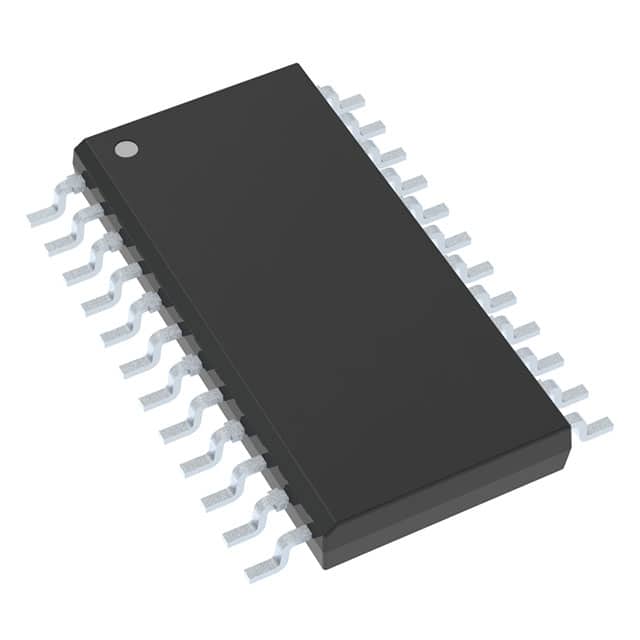

Supplier Device Package
24-SOIC
Series
-
Sampling Rate (Per Second)
100
Reference Type
External, Internal
Ratio - S/H:ADC
-
Package / Case
24-SOIC (0.295", 7.50mm Width)
Package
Tube
Operating Temperature
-40°C ~ 85°C
Product Attribute
Attribute Value
Number of Inputs
4
Number of Bits
16
Number of A/D Converters
1
Mounting Type
Surface Mount
Input Type
Pseudo-Differential
Features
Selectable Address
Data Interface
SPI
Configuration
MUX-ADC
Base Product Number
CS5505
Architecture
Sigma-Delta
