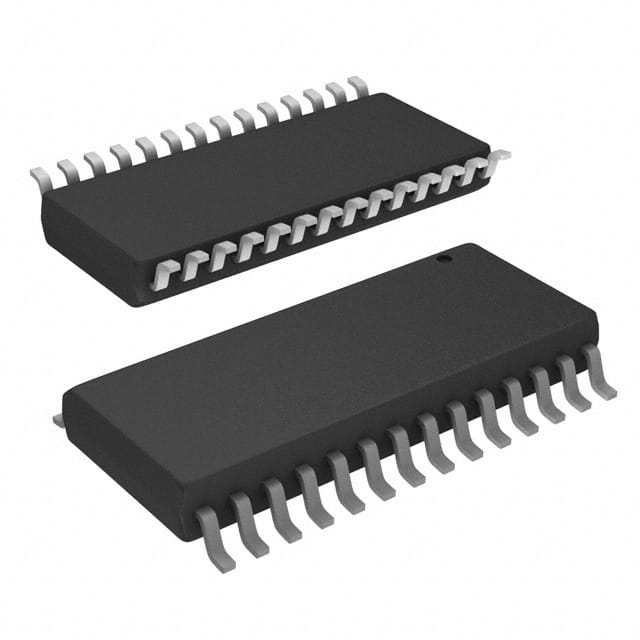

DS1501WS/T&R Image
Image may be representation.
See specs for product details.

DS1501WS/T&R

Manufacturer Part Number DS1501WS/T&R
Manufacturer Analog Devices Inc./Maxim Integrated
Detailed Description IC RTC CLK/CALENDAR PAR 28SOIC
Package 28-SOIC
In Stock 4663 pcs
Data sheet DS1501, 11Crystal Considerations with Maxim Real-Time ClocksSelecting a Backup Source for Real-Time ClocksMaxim Integrated REACHMaxim Integrated RoHS Cert
Reference Price (In US Dollars)
Delivery Time Components-House.com is a Reliable Stocking Distributor of Electronic Parts. We specialize in all Analog Devices Inc./Maxim Integrated series electronic components. We have 4663 pieces of Analog Devices Inc./Maxim Integrated DS1501WS/T&R in stock available now. Request a quote from electronics components distributor at Components-House.com, our sales team will contact you within 24 hours.
RFQ Email: info@Components-House.net
Request a quote Submit a Request For Quotation on quantities greater than those
displayed.

Specifications

Product Attribute Attribute Value
Voltage - Supply, Battery 2.5V ~ 3.7V
Voltage - Supply 3V ~ 3.6V
Type Clock/Calendar
Time Format HH:MM:SS (24 hr)
Supplier Device Package 28-SOIC
Series -
Package / Case 28-SOIC (0.295', 7.50mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Memory Size 256B
Interface Parallel
Features Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K
Date Format YY-MM-DD-dd
Current - Timekeeping (Max) 4mA @ 3V ~ 3.6V
Base Product Number DS1501
